Tube vibratory conveyor is also called
tube vibrating feeder.
It uses the vibration of the trough to quickly transport the material in the trough from the inlet to the outlet. It can be used to convey lumps, granules or powders, normal temperature Or high temperature various materials. When the machine vibrates, the size of the exciting force can be adjusted by adjusting the eccentric block. It is suitable for the feeding system of bauxite, silicon carbide, magnesia, building materials and other industries, and the material in the silo is evenly discharged into the batching lamp material system through the tube vibrating conveyor.
The feed and discharge of the trough of the tubular vibrating conveyor can also be made into one-point feed, one-point discharge, one-point feed, multi-point discharge, multi-point feed, one-point discharge and other types according to needs. When the conveying distance is long, multiple conveyors can be connected to convey.
Tubular vibrating conveyor, manufacturers can customize according to user needs:

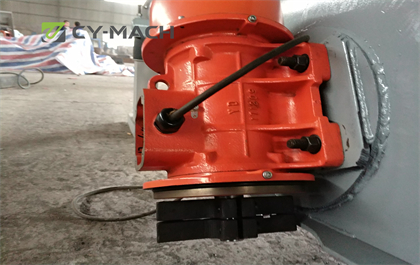

Downward vibrating tube vibrating conveyor: the vibrating motor is placed under the conveyor;
Upward vibrating tube vibrating conveyor: the vibrating motor is placed above the feeder;
Speed-regulating tubular vibrating conveyor: the vibration frequency of the vibrating motor can be adjusted steplessly within the range of 0-rated frequency;
Open tube vibrating conveyor: the top of the conveyor is open, which is more suitable for the downward vibration type;
Sealed tubular vibrating conveyor: the conveyor is completely sealed except for the inlet and outlet;
Pedestal type
tube vibrating conveyor: For large (heavy) conveyors, the seat type structure is generally used
Parameters required for customization of tubular vibrating conveyor manufacturers:
1. Ordinary tubular vibrating conveyors are not suitable for conveying materials with high viscosity and high moisture content, as well as flammable and explosive materials. If there are special materials mentioned above, it can be customized as an explosion-proof tubular vibrating conveyor or a special tubular vibrating conveyor for special materials.
2. When conveying powdery materials or mixed materials mainly in powdery form, the output will drop. Please refer to the conversion formula for the amount of drop.
3. When ordering, please specify the following items:
a. Material type and bulk specific gravity
b. Material particle size and moisture content
c. Delivery output
d. Conveying length
e. If intermediate loading and unloading is required, the distance between loading and unloading should be indicated
f. The place where the equipment is used (such as food, chemical industry, sand and gravel industry, etc.) should be indicated
