What do you know about the concrete vibrating platform?
2023-04-12

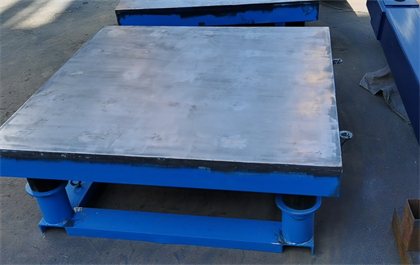

First of all, many of us know that the concrete shaking table is mainly used in the laboratory, and the on-site construction site is used for sample molding and prefabricated components to vibrate various slabs, beams and other concrete components. I bought the vibration table home, and your family should pay attention to the following items before installing: 1. Before installing the vibrating table, the foundation should be laid. When laying the foundation, the upper plane should be found horizontally and the fixing bolts should be buried according to the bolt holes of the bottom beam, and then installed. The fixing bolts must be tightened during installation. 2. Before the test machine is installed, the vibration table should be turned on for 3-5 minutes and then shut down. Check all the fastening bolts. If they are loose, they must be tightened before use. 3. In the process of vibrating platform, the concrete products should be firmly fastened on the vibrating table. The products needed to be vibrated should be placed symmetrically with the table to balance the load. The user of the fastening device of the vibrating product can be based on Need to design and configure by yourself. 4. The vibrator bearing should be checked frequently, removed and washed regularly, and replaced with lubricating oil to keep the bearing well lubricated and prolong the service life of the vibrator. 5. The vibration table should have a reliable grounding wire to ensure safety. In addition, in the process of using, also pay attention to the following points, so as not to affect your use effect. 1. Before operation, check the motor, transmission and protective devices, and confirm that they are intact and effective. The bearing seat, eccentric block and machine seat bolts should be fastened firmly. 2. The vibrating table should be equipped with reliable locking clamps. The concrete tank should be locked when vibrating, and the concrete template must not vibrate unconstrained on the vibrating table. 3. The vibrating table cable should be worn in the electric pipe and pre-embedded firmly. 4. Before operation, check and confirm that there is no leakage of lubricating oil, and that the oil temperature and transmission device meet the requirements.
