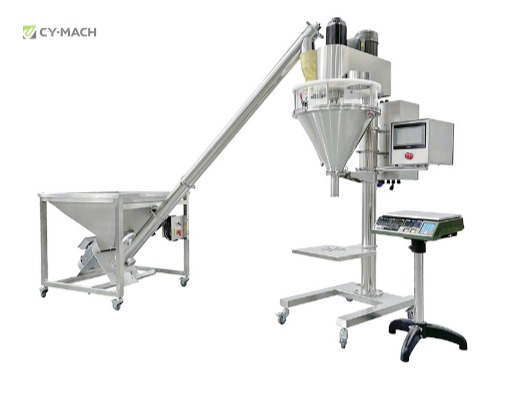

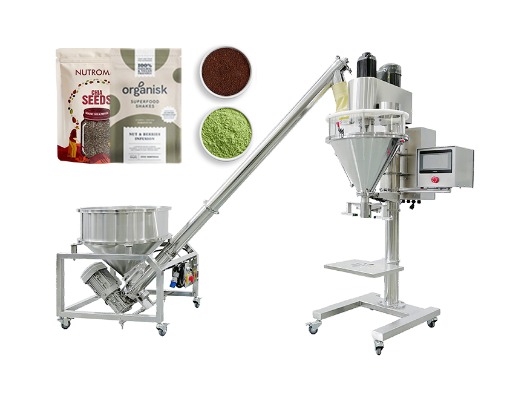

Screw Powder Filling Machine

Product name: Powder filling machine
Application: powder, granules
Screw conveyor:ls108/114/133/159/219/273/325mm
Filling range: 2g-5kg
Packing speed: 1200- 3500 bags/hour
Application industry: food, grain, chemical and other powder industries.
Features: easy operation, disassembling for cleaning and simple maintenance.

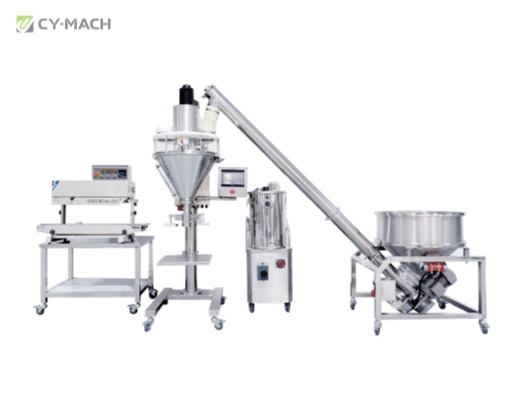

Option: band sealer, screw conveyor, belt conveyor, vacuum conveyor, rotary packer.

Send Email

Get Price

Description

This type of auger filler can do measuring and filling work. Due to the special professional design, it is suitable for the fluidic or low-fluidity materials, like milk powder, Albumen powder, rice powder, coffee powder, solid drink, condiment, white sugar, dextrose, food additive, fodder, pharmaceuticals, agriculture pesticide, and so on.
Stainless steel structure, Contact parts SS304
Include hand-wheel of adjustable height.
Replacing the auger parts, it is suitable for material from super thin powder to granule.

Parameters

Powder filling machine parameters<br/>

Filling Range	2g-5kg
Measurement	Volume/Weighing
Speed	1200-3500bags/h
Accuracy	≤1%
Voltage	AC380V/220V/110V
Power	1.5KW

The above are standard sizes, all parameters can be customized.<br/>
Screw conveyor parameters<br/>

Model	LS108	LS114	LS133	LS159	LS219	LS273	LS325	LS426
Diameter of screw(mm）	108	114	133	159	219	273	325	426
Speed of main shaft(r/min)	190	190	190	112	100	90	80	71
Screw picth(mm)	108	133	159	194	219	273	325	402
Max capacity (t/h)	1	2	4	8	15	20	30	50
Max conveying length(m)	8	10	12	15	18	25	25	25
Working angle(degree)	0~60	0~60	0~60	0~60	0~60	0~60	0~60	0~60

Features

1. Stainless steel structure; Quick disconnecting or split hopper could be washed easily without tolls.
2. servo motor drive.
3. Fill by weight system with high accuracy and high speed.
4. Replacing the auger parts, it is suitable for material from powder to granule. The machine can be customized.
Suitable for the quantitative packaging of flour, milk powder, protein powder, yeast, coffee, powder granular additives, enzyme preparations, solid medicine, carbon powder, talcum powder, fuel, flavor and fragrance, five-spice powder, pesticide, veterinary medicine, chemical agent, food seasoning, laundry powder, and other solid materials.

Customized case
