Ultrafine pulverizer

Model: 15B/20B/30B/60B/80B/100B
Application industry: Food industry (spices, sugar, pepper, dried chili, turmeric, etc.)
Handling capacity: 20-100kg/h
Machine Material: SS304/316, SUS304
Features:Smooth surface, wear-resistant and corrosion-resistant, durable, easy to operate, good crushing effect, high work efficiency, safe operation, clean and hygienic.
Description
Parameters
Features
Description

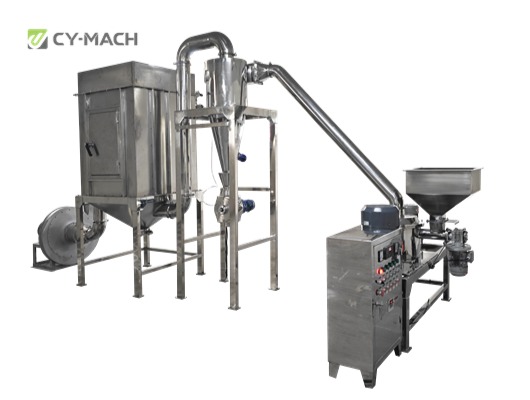

The ultrafine pulverizer consists of a pulverizing main unit, a cyclone separator, a pulse dust removal box and a centrifugal fan. The material enters the pulverizing chamber through the feeding hopper, and is crushed by the high-speed rotating movable knife disc and the fixed tooth disc. The pulverizing fineness can be adjusted by adjusting the speed of the grading impeller to achieve the required fineness. The faster the speed of the grading impeller, the finer the fineness of the material. The pulverized material enters the cyclone separation chamber under the action of the rotating centrifugal force and the induced draft fan, and is discharged after the fan is turned off. The dust enters the pulse dust removal box and is recycled after being filtered by the filter cartridge. The machine is designed according to the "GMP" standard and is made entirely of 304 stainless steel. There is no dust flying during the production process. The machine is widely used in the fine grinding of low-hardness materials such as food, chemicals, feed, tobacco, calcium carbonate, plant fiber, dyes, coatings, pesticides, etc.
Parameters
Model Production capacity
(kg/h)
Max feeding size(mm) Discharge size(Mesh) Total Power
(KW)
Main speed(r/min)
15 20-80 <10 1-320 18.37 5800
20 50-100 <10 1-320 35.8 4200
30 100-200 <10 1-320 54 3800
60 200-500 <12 1-320 76.75 3200
80 300-800 <12 1-320 96 2800
100 400-100 <12 1-320 138 3200

Features
1. High crushing efficiency - almost no loss, no residue. Under the dual action of high-speed impact force and shear force, the crushing time is greatly shortened and the crushing efficiency is improved. 2. High crushing fineness - most animal and plant materials can be crushed to 150 mesh to 2500 mesh. 3. Low crushing temperature - under continuous operation, its temperature will never exceed 40 degrees. 4. Low crushing cost - less labor, short time, fully enclosed crushing process without dust overflow, no loss of effective ingredients. Very little material loss can greatly reduce production costs. 5. Simple operation - optimal capacity configuration, ensure complete discharge of materials, simple operation and material replacement. 6. Easy maintenance - compact structure, small footprint, easy maintenance and repair. 7. Clean and hygienic - smooth inside and outside, one machine for multiple uses, reduce pollution, and reduce the burden of cleaning. 8. Wide range of applications - it can adapt to materials with fibrous, high toughness, high hardness or a certain moisture content. For materials such as pollen and other spore plants that require cell wall breaking, the wall breaking rate is higher than 95%.
