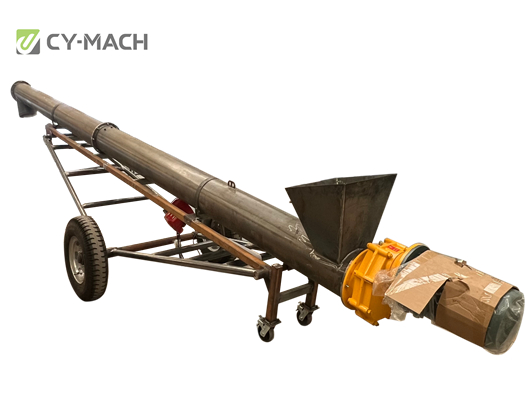

Adjustable Height Screw Conveyor

adjustable height Screw conveyor
Model: LSY-159/LSY-219/LSY-273/LSY-325/LSY-426 standard machine/customized machine
Advantages: Adjustable height, movable lifting conveyor.
Scope of application: Screw conveyor is mainly used to transport various powdery, granular and small block materials
Applicable industries: Grain industry, building materials industry, chemical industry, machinery manufacturing industry, food processing industry, transportation industry, etc.
The bulk materials transported include grains, beans, flour, etc. Building materials such as cement, clay, and sand, chemicals such as salts, alkali, and fertilizers, and bulk cargoes such as coal, coke, ore, etc.
Advantages: Can be transported horizontally, tilted or vertically. It has simple structure, small cross-sectional area, good sealing, easy operation, easy maintenance, and convenient sealed transportation.
Material: stainless steel or carbon steel.
We are customer-centric and provide customized screw conveyor solutions. We deeply understand your needs and design and adapt according to your requirements. By choosing our screw
conveyor, you will have an advanced equipment that can improve production efficiency and reduce costs.

Send Email

Get Price

Description

Inclined screw conveyor, also known as mobile screw conveyor or twist conveyor, is suitable for conveying bulk materials in chemical and metallurgical industries, as well as in papermaking, construction engineering and other industries, such as cement, coal powder, carbon black, soda ash flour, grain and pulp. Because the machine can move freely and can be transported continuously at any position horizontally, obliquely and vertically, it is especially suitable for field mobile operations, such as concrete mixing stations, bulk material storage and transportation, etc., which can reflect its progressiveness and superiority.
A) High quality motor and gear box, with heavy duty design, and low noise.
B) outside tube complete with one inlet, one outlet, end flange, ball joint , inspection window.
C) standard fitting parts, middle bearing, end bearing, splined shaft coupling.
D) Lifting eyes on each tube section, convinient for transport and installtion.
E) small diameter, great efficiency, high throughout rates.

Parameters

Model			LS100	LS120	LS140	LS160	LS200	LS250	LS300	LS400
Diameter of screw(mm）			90	115	135	163	185	237	285	362
Speed of main axis(r/min)			300	300	300	308.	260	200	170	170
Diameter of main case(mm)			108	133	159	194	219	273	325	402
Max capacity (t/h)			7	10	15	25	40	60	90	120
Max conveying length(m)			8	10	12	15	18	25	25	25
Working angle(degree)			0~60	0~60	0~60	0~60	0~60	0~60	0~60	0~60
Motor	Model	Length≤7M	Y90S-4	Y100L1-4	Y100L2-4	Y132S-4	Y132M-4	Y160L-6	Y180M-4	Y180M-4
	Power(kw)	Length≤7M	1.1	2.2	3	5.5	7.5	11	18.5	18.5
	Model	Length≥7M	Y100L1-4	Y100L2-4	Y112M-4	Y132M-4	Y160M-4	Y180L-6	Y180L-4	Y180L-4
	Power(kw)	Length≥7M	2.2	3	4	7.5	11	15	22	22

Detail

1.The motor reducer could be installed on the top or the bottom. 2.Conveyor has big transport capacity, long distance available. 3.Stable and controllable start, continuous and highly efficient operation. 4.The conveying could be the level or the inclined. 5.The blade could be entity spiral or belt spiral.

Detail
